OEM
BYD Atto 3
Front hood opening cable assembly
OE / Material Codes
13451187-00SC2EM-8402520$5USD
In StockWhat happens next:
- Review your selections on the cart page.
- Pay directly via Stripe (when all items have retail pricing).
- Or send the list as a quote request for bulk pricing.
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Hood & Bonnets
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Front hood opening cable assembly Workshop Guide — BYD Atto 3
Front Compartment Cover Opening Cable Assembly - Removal and Installation
Removal
- Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation

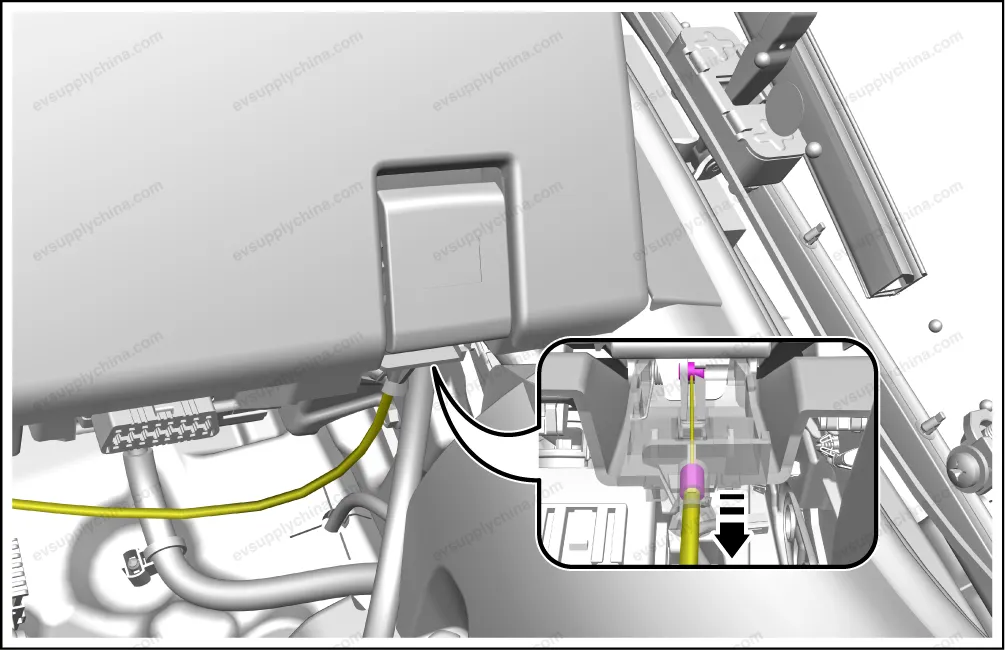

- Detach the front compartment cover opening cable assembly from the front compartment cover opening handle assembly.

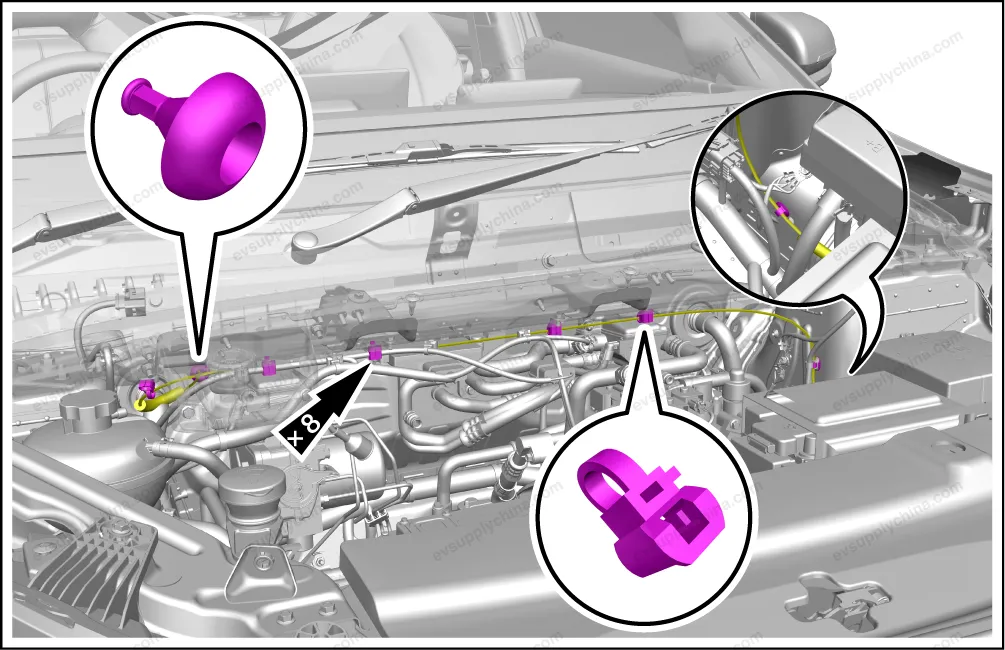

- Detach 8 fixing clips from the front compartment cover opening cable assembly.
- Remove the front compartment cover opening cable assembly.

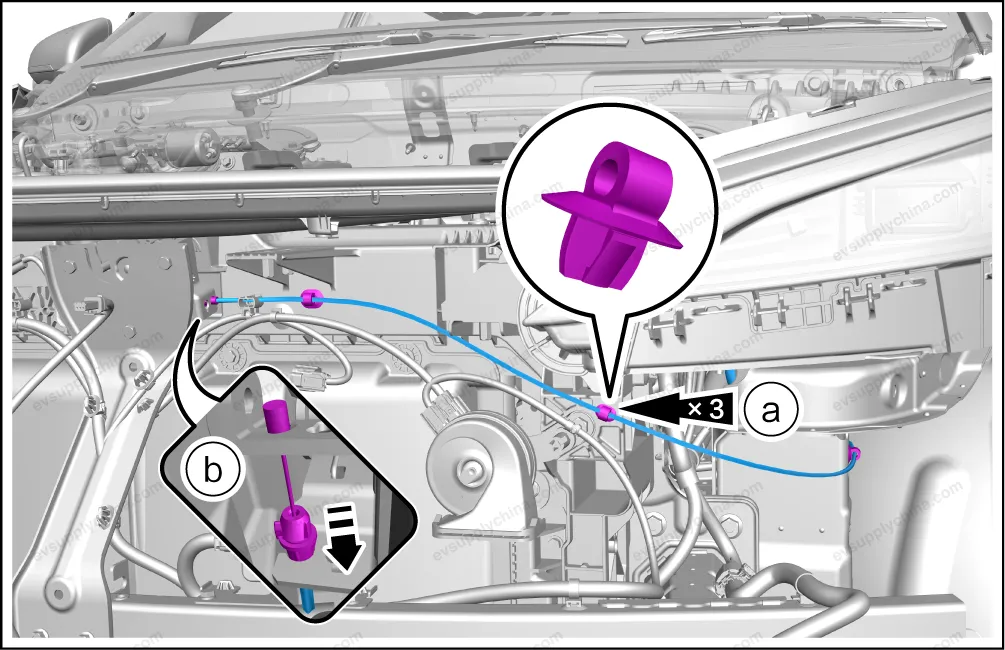

- Detach 3 fixing clip.
- Detach the front compartment cover opening cable assembly from the front compartment cover lock body assembly, and take it out.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, test whether the front compartment cover can be opened normally.
Front hood opening cable assembly Fitment Diagram — BYD Atto 3
