OEM
BYD Atto 3
Rear floor mudguard bracket assembly
OE / Material Codes
13222119-00SC2E-3102750$4USD
In StockWhat happens next:
- Review your selections on the cart page.
- Pay directly via Stripe (when all items have retail pricing).
- Or send the list as a quote request for bulk pricing.
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Fenders & Mudguards
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear floor mudguard bracket assembly
BYDYuan PLUS/Atto 3
2022–2025BYDDolphin
2023–2025Rear floor mudguard bracket assembly Workshop Guide — BYD Atto 3

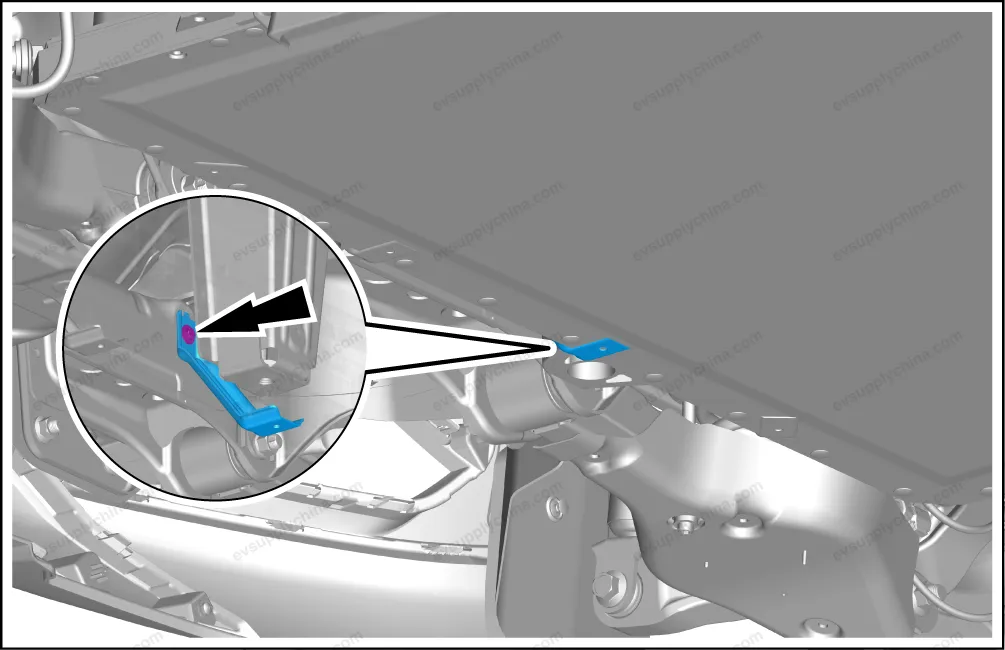

Rear Floor Mudguard Bracket Assembly - Removal and Installation
Removal
- Remove the rear floor mudguard. See Rear Floor Mudguard - Removal and Installation
- Remove one fixing bolt, and take out the rear floor mudguard bracket assembly.
Installation
- Follow the removal steps in reverse order to install.

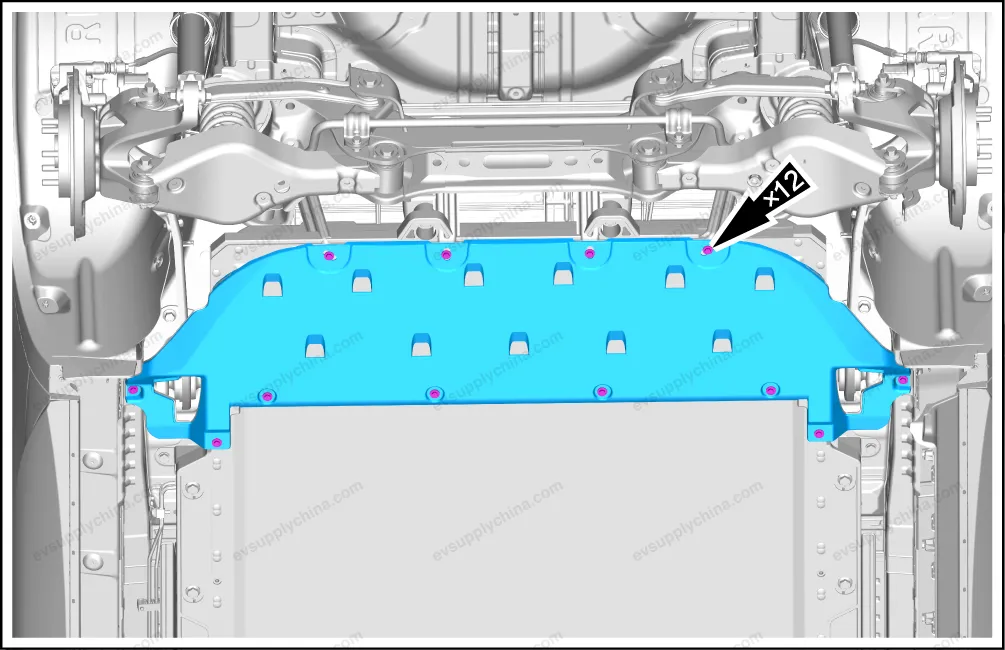

Rear Floor Mudguard - Removal and Installation
Removal
- Lift the vehicle.
- Remove 12 bolts, and take out the rear floor mudguard.
Installation
- The installation steps are opposite to the removal steps.

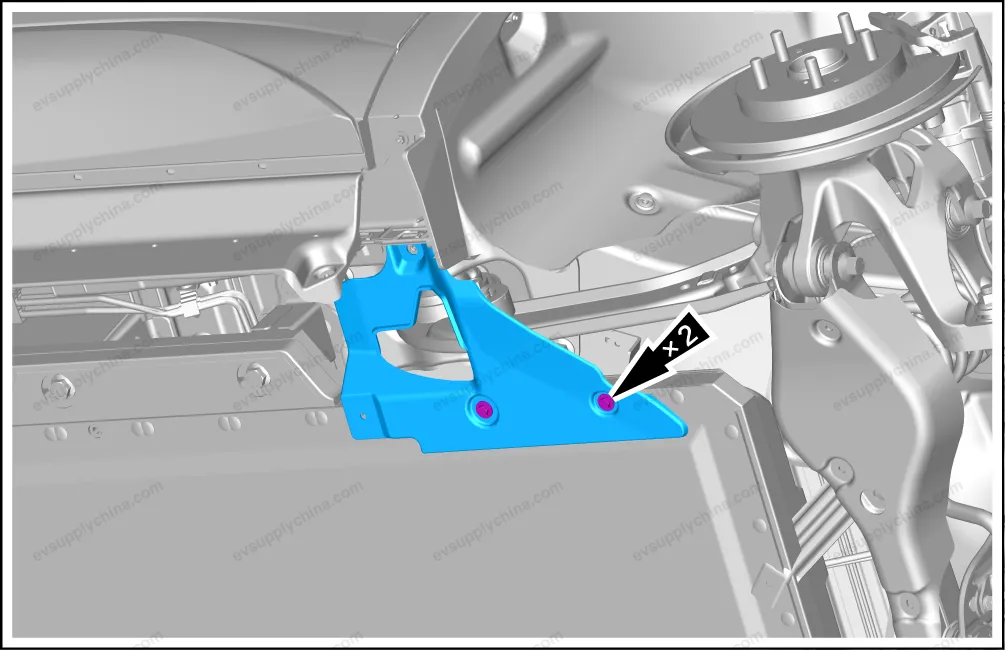

Rear Floor Left Mudguard - Removal and Installation
Removal
- Remove the rear floor mudguard. See Rear Floor Mudguard - Removal and Installation
- Remove 2 fixing bolts, and take out the left mudguard of the rear floor.
Installation
- The installation steps are opposite to the removal steps.
