OEM
BYD Atto 3
Motor Radiator Assembly I
OE / Material Codes
13170637-00KD-1301030$36USD
In StockWhat happens next:
- Review your selections on the cart page.
- Pay directly via Stripe (when all items have retail pricing).
- Or send the list as a quote request for bulk pricing.
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Motor Radiator Assembly I
BYDYuan PLUS/Atto 3
2024Motor Radiator Assembly I Workshop Guide — BYD Atto 3
Motor Radiator Assembly I - Removal and Installation
Removal
- Discharge coolant. See Replacement of Coolant

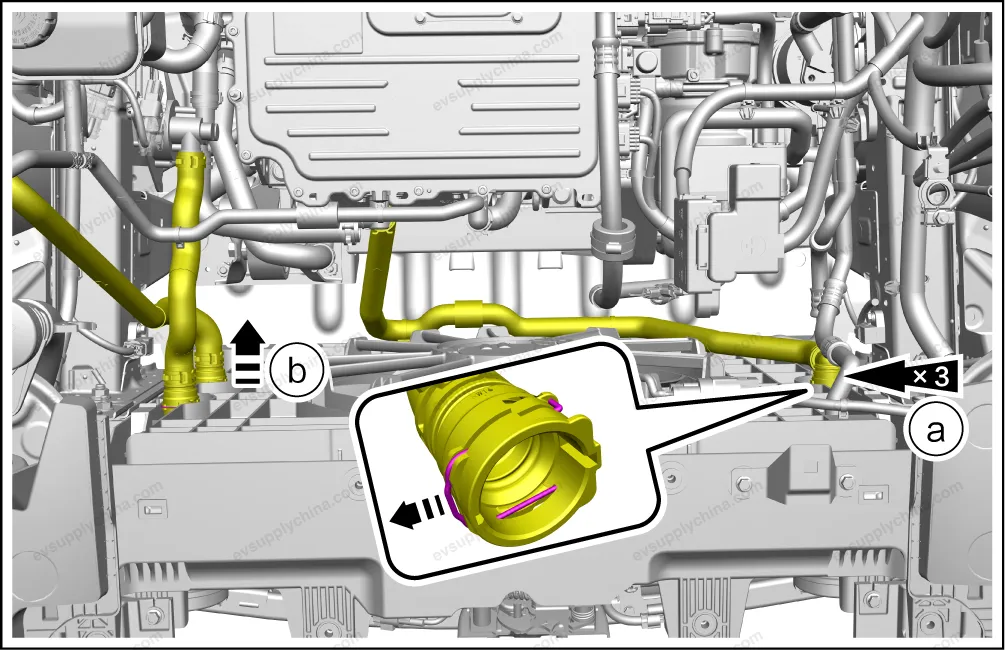

- Detach the pipeline connection of motor radiator assembly I .
- Pry up the pins of 3 water pipe quick connectors.
- Detach the connection between motor radiator assembly I and water pipe.

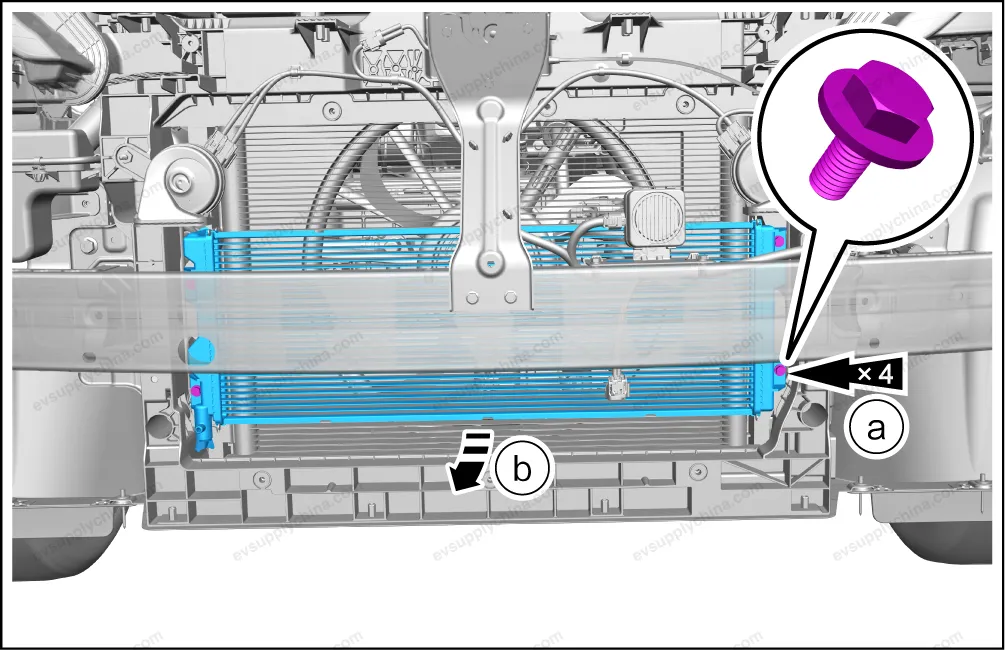

- Remove the motor radiator assembly I.
- Remove 4 fixing bolt.
- Take out the motor radiator assembly I.
Installation
- The installation steps are opposite to the removal steps.
Motor Radiator Assembly I Fitment Diagram — BYD Atto 3
